HT presents new material locks
Health | Safe material transfer for GMP areas and clean rooms (in accordance with ISO 14644)
The HT Group presents a new product from its own product portfolio:

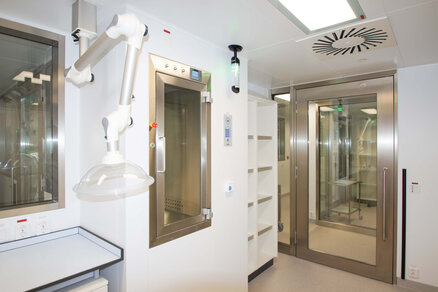

Certified material airlocks that have been specially developed for use in GMP-compliant areas and cleanrooms in accordance with DIN EN ISO 14644-1, as well as up to GMP class A. With state-of-the-art technology and the highest quality standards, these sluice systems enable the safe and controlled transfer of materials between rooms with different cleanliness classes.
Innovative solutions for demanding environments
HT Group's airlock systems meet the requirements of DIN EN ISO 14644-1 (ISO class 5) as well as the requirements of the EU GMP guidelines and are optimally tailored to the needs of cleanrooms, pharmaceutical production, life science companies, chemical sectors and food industries.
If required, we also offer the material sluice systems with fire and radiation protection depending on the structural requirements - an ideal solution for environments in which the highest hygiene and safety standards are essential.
Versions
- Single airlock
- Corner airlock with 2 or 3 doors
- 2-chamber airlock / multi-chamber airlock
- Trolley airlock, steplessly accessible
All airlock systems can be supplied with the following optional equipment variants:
- HEPA filter H14 in the supply and exhaust air unit possible
- Filter monitoring via integrated pressure sensors in the airlock
- LED interior lighting
- EI30 / EI60 fire protection
- Radiation protection
- UV-C decontamination
- Stainless steel 1. 4404 (V4A)
- Perforated shelves with side-mounted hygiene-optimized shelf holders (GMP-compliant)
- Connection to building management system
- Remote maintenance and web server visualization of interlock functions
Flexible variants: Active, partially-active and passive airlocks
The HT Group offers its airlock solutions in three versions to meet the specific requirements of a wide range of processes:
- Active airlocks:
Fully automatically controlled systems that enable precise and efficient material transfer. Self-sufficient material airlock with integrated ventilation concept. Supply and exhaust air are not connected to the HVAC system.
- Partially active airlocks:
Material pass-through with integrated HEPA filter based on the principle of low-turbulence displacement flow. The airlocks are operated via the buildings´ HVAC system.
- Passive airlocks:
Material pass-through with mutual interlocking. Passive material airlocks are not connected to any ventilation system.
Media connections for filter measurement
Display
Technical highlights and product variants
The material airlocks impress with their robust double-wall construction and flush-mounted design. Made of high-quality glass and 1.4301 stainless steel, they guarantee a hygiene-optimized, disinfectant-resistant appearance. The hinged doors with generous viewing windows and all-round sealing profile, as well as the electric interlocking system, effectively prevent air exchange between the room classes.
The well-founded ventilation concept inside the airlock ensures perfect cleanliness directly at the product. A low overpressure inside the airlock prevents the ingress of external contaminants.
Certified quality and GMP-compliant processes
All systems are comprehensively tested, certified and supplied with FAT documents. HT Group maps all processes in accordance with the applicable EU GMP guidelines so that all GMP qualification steps can be planned and implemented in close coordination with the subsequent work processes. This means that the solutions not only offer maximum product safety, but also long-term reliability and low maintenance.
A strong partner for health and research
With these innovative material airlocks, the HT Group is setting new standards in the field of cleanroom technology. The modular systems are flexibly adaptable and can be quickly integrated into existing or new systems - ideal for the dynamic requirements of pharmaceutical logistics, the production of patient-specific medicines and other sensitive applications.
References from the areas of GMP cleanrooms, cleanrooms in accordance with DIN ISO 14644-1:
Haukeland University Hospital, Bergen, Norway
